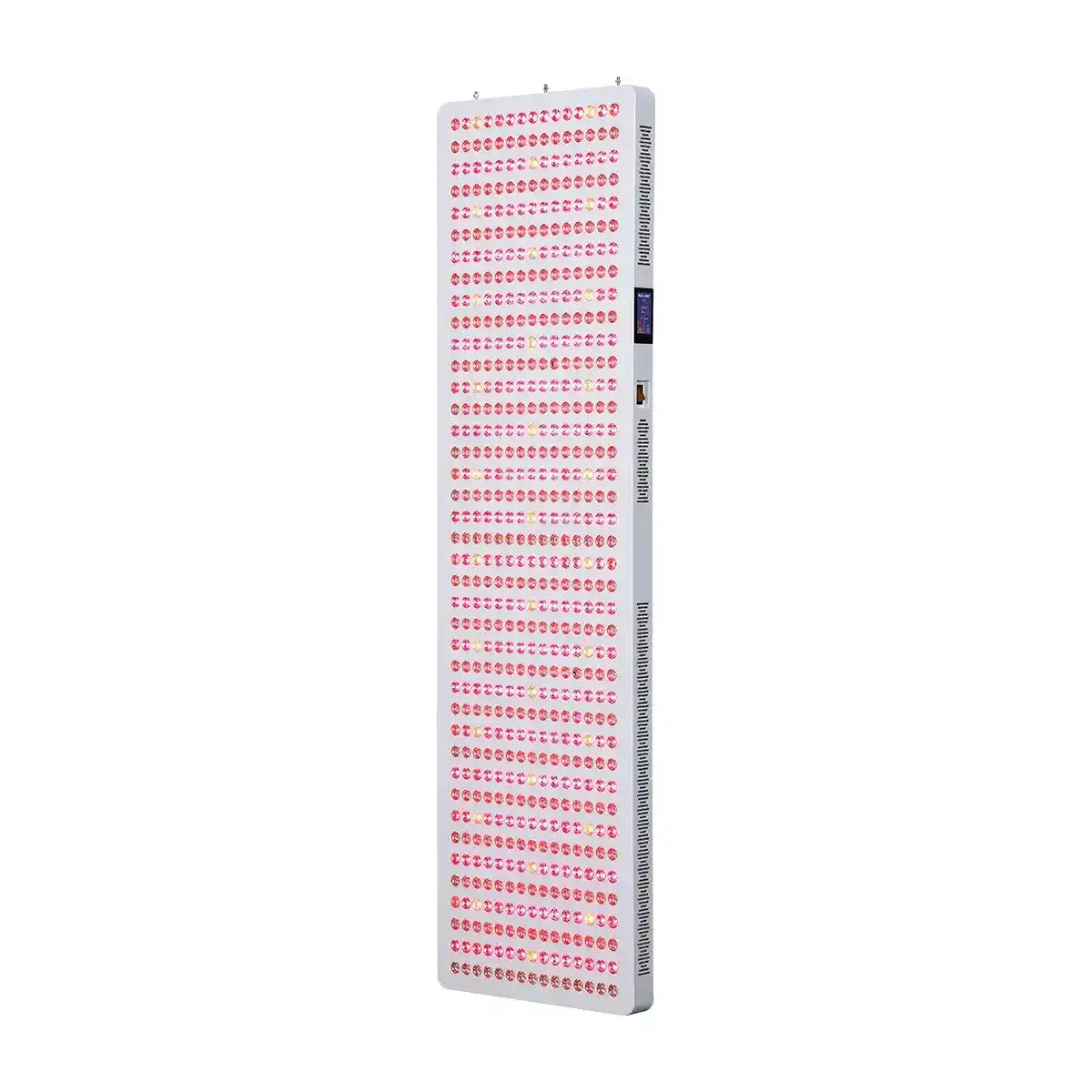

The REDDOT RDPRO3000-FS8 Ultra is a large red light therapy panel designed for full-body positioning in home, wellness, fitness, and professional environments. Its 150 × 42 cm treatment surface uses 600 single-chip LED packages inside an ultrathin 5.4 cm housing, creating broad coverage without the depth of a conventional large-format panel.
The panel combines eight wavelengths across visible yellow, visible red, and near-infrared light: 590, 630, 660, 670, 810, 830, 850, and 1060 nm. Eight-channel control allows supported wavelength channels to be adjusted from 0–100%, giving users more control over the light output than fixed-spectrum panels.
Operation can be managed through the touchscreen, remote controller, or mobile app. The RDPRO3000-FS8 Ultra also includes a 1–30 minute timer and adjustable pulse settings up to 9999 Hz. For buyers looking for a full body red light panel with a wide wavelength range, configurable output, and a slim professional format, the RDPRO3000-FS8 Ultra provides a flexible platform for both personal and commercial setups.
Eight-Wavelength Architecture: Combines 590, 630, 660, 670, 810, 830, 850, and 1060 nm wavelengths across visible yellow, visible red, and near-infrared spectrum groups.
Eight-Channel Output Control: Supported wavelength channels can be adjusted from 0–100%, allowing greater control over the panel’s light output.
600 Single-Chip LED Packages: Uses 600 individual LED packages with a manufacturer-listed nominal rating of 5W per LED package.
Large Full-Body Format: The 150 × 42 cm panel provides a large illumination area suited to full-body and large-area positioning.
5.4 cm Ultra-Slim Housing: The slim profile reduces overall panel depth while maintaining a large-format design.
Multiple Control Methods: Operate the panel through its touchscreen, remote controller, or supported mobile app.
Adjustable Session Timer: Set operating time from 1–30 minutes directly through the control system.
Adjustable Pulse Setting: Supports pulse settings from 0–9999 Hz.
Universal Input Voltage: Supports AC 100–240V input for compatibility across a range of electrical markets.
SPCC Metal Housing: Built with an SPCC shell for a rigid, professional-format enclosure.
Model: RDPRO3000-FS8 Ultra
Product Type: Large-Area / Full-Body Red and Near-Infrared Light Panel
LED Architecture: Single-Chip
LED Quantity: 600 LED Packages
Nominal LED-Package Rating: 600 × 5W
Wavelengths: 590 / 630 / 660 / 670 / 810 / 830 / 850 / 1060 nm
Spectrum Groups: Visible Yellow, Visible Red, and Near-Infrared
Control Architecture: 8 Channels
Output Adjustment: 0–100%
Irradiance – Solar Meter: >200 mW/cm² at 15 cm (approximately 6 inches)
Irradiance – Spectrometer: >109 mW/cm² at 15 cm (approximately 6 inches)
Input Voltage: AC 100–240V
Timer: 1–30 Minutes
Pulse Setting: 0–9999 Hz
Dimensions: 150 × 42 × 5.4 cm
Control Methods: Touchscreen Panel, Remote Controller, Mobile App
EMF Emission: Manufacturer-listed as negligible
Shell Material: SPCC
LED Lifespan: Manufacturer-rated at 50,000+ hours
Working Environment: -10°C to 45°C
Manufacturer Warranty: 3 Years
At My Energy Flow, we’re committed to delivering your order with the same care and precision that goes into every product we offer. Our shipping process is designed to provide clear communication and reliable service from order placement through delivery.
Your peace of mind is important to us. Please review the return and manufacturer warranty terms below before purchasing so you have a clear understanding of the coverage provided.
🔄 Returns & Refunds
🛡️ Manufacturer Warranty
Thank you for choosing My Energy Flow. Your confidence, comfort, and wellness are at the heart of everything we do — and we’re here to support you at every step of your journey. More than a purchase, your order is the beginning of a trusted relationship, and our team is always ready to provide clarity, care, and guidance whenever you need it.
Choose options
The RDPRO3000-FS8 Ultra is designed by REDDOT as a large-area, full-body-format panel. It measures 150 × 42 cm, giving it substantially more vertical coverage than smaller targeted panels. Actual coverage will depend on your distance from the panel and how it is positioned.
The panel includes 590, 630, 660, 670, 810, 830, 850, and 1060 nm wavelengths across visible yellow, visible red, and near-infrared light. Unlike a fixed-spectrum panel, the RDPRO3000-FS8 Ultra uses eight control channels so supported wavelengths can be adjusted independently from 0–100%. This gives you more control over which parts of the spectrum are active and their output level.
Irradiance readings can vary depending on the instrument and test method used. At 15 cm, REDDOT lists more than 200 mW/cm² when tested with a solar meter and more than 109 mW/cm² when tested with a spectrometer. For a meaningful comparison between red light panels, always compare the measurement distance and testing method rather than looking only at the highest published number.
Do not assume that the floor stand shown in product images is included. REDDOT lists the remote control, power cord, patch cable, goggles, and model-compatible installation hardware according to the written quotation. Stand and mounting requirements should be confirmed with My Energy Flow before ordering so your setup includes the equipment you need.
Yes, the RDPRO3000-FS8 Ultra can be considered for home setups as well as professional wellness and fitness spaces. Its AC 100–240V input supports a wide range of electrical markets, while the 5.4 cm housing keeps the large panel relatively slim. Before ordering, confirm that you have enough space for the panel, the selected stand or mounting system, and the required clearance around the unit.
Confirm how you plan to position the panel, whether you need a floor stand or other mounting hardware, your available floor and wall space, and access to a compatible power source. The panel itself measures 150 × 42 × 5.4 cm. If you are planning a commercial installation or a specific mounting configuration, contact My Energy Flow before ordering so the setup can be reviewed.
REDDOT lists the RDPRO3000-FS8 Ultra as FDA registered and also lists CE, RoHS, and FCC certifications or compliance documentation for the model. FDA registration is not the same as FDA approval. Buyers requiring specific regulatory documentation for a professional or commercial installation should confirm the applicable documents for their market before ordering.
For a large red light panel, LED count is only part of the story. The RDPRO3000-FS8 Ultra stands out for the level of control and technical verification available behind the platform.
REDDOT states that qualified buyers can request wavelength and bandwidth records for all eight channels, along with irradiance mapping that includes average, peak, and uniformity results at 15 cm. Test conditions such as the instrument, calibration, warm-up time, measurement plane, and active channels can also be documented.
In addition to manual channel adjustment, REDDOT lists configurable presets, smart-mode options, and interface-language support within available control packages. Exact preset and app functions can depend on the supplied configuration, so they should be confirmed when ordering.
REDDOT states that supporting records can include pulse verification, thermal stability testing, electrical and EMC verification, and IEC 62471 optical-safety testing. Buyers with commercial or professional installation requirements can request documentation for the applicable model and configuration.
